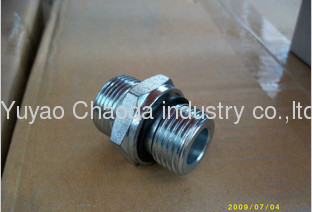

METRIC MALE 74°CONE/SAE O-RING BOSS L-SERIES ISO 11926-3

Payment Terms:	T/T,L/C,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: 1QO/1QO-RN

Head Code: Hexagon

Technics: Others

Material: Carbon Steel

Brand Name: Yuyao Chaoda

Means of Transport: Ocean,Air

Shape: Others

Type: Others

Connection: Male

METRIC MALE 74°CONE: SAE O-RING BOSS L-SERIES IS...

Metric Thread 74° Cone Flared Tube Fittings
1QO 1QO-RN
METRIC MALE 74 ° CONE/SAE
O-RING BOSS L-SERIES ISO 11926-3

Metric Thread 74° Cone Flared Tube Fittings

1QO 1QO-RN

METRIC MALE 74 ° CONE/SAE

O-RING BOSS L-SERIES ISO 11926-3

Introductions
Hydraulic hose fittings and adapter
Material:Carbon Steel, Stainless Steel, Brass and Copper.
Size:All kind of Size is available.
Standard:SAE J514, SAE J1453, BS5200, DIN2353, DIN3865 Standards.
Thread: JIC series, BSP series, Metric series, ORFS series, NPTF series and NPTM series.
Certification: TS16949
Thread: 90% products are exported to American and European Market for many years.
Export: Our products are adopted by top famous companies and quality is reliable.

OEM: Our engineering Team and Drawing Dept. could design and make hsoe fittings according to your special requirement.

YOUR RELIABLE SOURCE OF FITTINGS AND ADAPTERS

Specifications

PART NO.	THREAD		TUBE O.D.	O-RING	DIMENSIONS
PART NO.	E	F	D	F	A	B	L	SI	S2
1QO-16-06	M16X1.5	9/16"X18	10	O906	18	9.9	35	17	19
1QO-18-08	M18X1.5	3/4"X16	12	O908	18	11.1	37	22	22
1QO-22-10	M22X1.5	7/8"X14	14	O910	19.5	12.7	42	27	27
1QO-27-12	M27X1.5	1.1/16"X12	18	O912	20	15.1	46	32	32
1QO-30-12	M30X1.5	1.1/16"X12	20	O912	23	15.1	49	32	36
1QO-33-16	M33X2	1.5/16"X12	22	O916	26	15.1	54	38	38
1QO-39-16	M39X2	1.5/16"X12	28	O916	26	15.1	58	41	46
1QO-42-20	M42X2	1.5/8"X12	32	O920	28.5	15.1	58	50	50
