90° GB METRIC FEMALE 74° CORE SEAT HOSE FITTING from China manufacturer

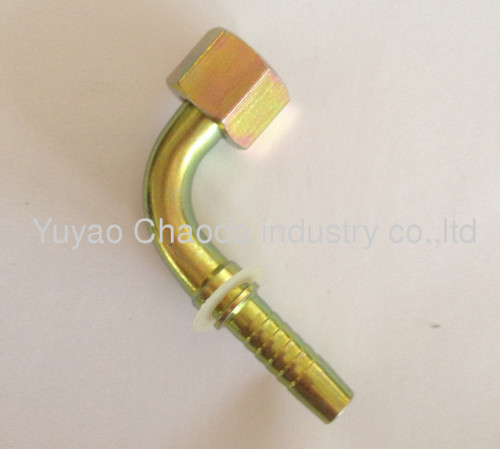

90° GB METRIC FEMALE 74° CORE SEAT HOSE FITTING

Price:	0.02~0.05 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: 20791

Production Capacity: 100000pcs/month

Delivery Date: According to exact quantity

Shape: Others

Type: Plug

Connection: Female

90° GB METRIC FEMALE 74° CORE SEAT: HOSE FITTING

Means of Transport: Ocean,Air

Packing: PE bag+carton+parcel

Head Code: Others

Technics: Forged

Material: Carbon Steel

Brand Name: Yuyao Chaoda

Item:90° GB METRIC FEMALE 74° CORE SEAT HOSE FITTING
Material:Carbon steel,aluminium,brass,stainless steel
Finish:Zinc plated

SWAGED HOSE FITTING

90°GB METRIC FEMALE 74 °CONE SEAT

REF. GB/T 9065.1

Introductions
Hydraulic hose fittings and adapter
Material:Carbon Steel, Stainless Steel, Brass and Copper.
Size:All kind of Size is available.
Standard:SAE J514, SAE J1453, BS5200, DIN2353, DIN3865 Standards.
Thread: JIC series, BSP series, Metric series, ORFS series, NPTF series and NPTM series.
Certification: ISO9001:2000,TS16949
Thread: 90% products are exported to American and European Market for many years.
Export: Our products are adopted by top famous companies and quality is reliable.

OEM: Our engineering Team and Drawing Dept. could design and make hsoe fittings according to your special requirement.

YOUR RELIABLE SOURCE OF FITTINGS AND ADAPTERS

20791

PART NO.	THREAD E	HOSE BORE		DIMENSION
PART NO.	THREAD E	DN	DASH	A	C	H	S2
20791-12-04C	M12*1.25	6	04	30	9	33.5	17
20791-12-04C	M12*1.5	6	04	30	10	33.5	17
20791-14-04	M14*1.5	6	04	30	8.5	34	19
20791-16-04	M16*1.5	6	04	30	8	35	22
20791-16-05	M16*1.5	8	05	34	8	38	22
20791-18-06	M18*1.5	10	06	35.3	10	41.3	24
20791-22-08	M22*1.5	12	08	41	10	48	27
20791-22-10	M22*1.5	16	10	56.5	10	52.5	27
20791-27-10	M27*1.5	16	10	56.5	11	54	32
20791-30-12	M30*1.5	20	12	66.2	11	63.5	36
20791-33-12	M33*2	20	12	65.5	13	63.5	41
20791-33-16	M33*2	25	16	76.7	13	69	41
20791-36-12	M36*2	20	12	65.5	14	63.5	41
20791-36-14	M36*2	22	14	71.2	14	64.5	41
20791-39-16	M39*2	25	16	76.7	14	70.5	46
20791-45-20W	M45*2	32	20	91.5	15	83	55
20791-52-20W	M52*2	32	20	93	17	84.5	60
20791-52-24W	M52*2	40	24	110.7	17	96.5	60
Notes:1.For use with braided hoses 2.If use with spiral hoses,hose fitting
series number is 20792-xx-xx

Our main products are Ferrule, Hydraulic fittings, Hydraulic hose fittings, Hydraulic adapter, Hydrualic connections, hydraulic 3-piece suit, union tee, union cross, etc, details comes below:

1) Ferrule, matched with many kinds of pipes such as SAE, DIN, EN, GB etc

2) Metric Fitting

Flat Seal Fitting, Mulit-seal fitting, spherical seal fitting, 60° Cone seal fitting, 74° cone seal fitting, 24°cone O-ring L.T. Fitting, 24°cone O-ring H.T. Fitting, JIS 60° Cone Seal Fitting, Standpipe Fitting, Japan Metric Fitting etc;

3) British Pipe Adapter

JIS BSP 60° Cone seal Adapter, BSPT Adapter, BSP multiseal adapter, BSP flat Seal Adapter, BSP O-ring Seal Adapter;

4) Americal Pipe Adaptor

SAE Code 62 Flange, SAE Code 61 Flange, NPT Adpator, JIC 74°Cone Seal Adaptor, NPSM 60°Cone Seal Adaptor, ORFS Flat Seal Adaptor, SAE O-ring Seal Adaptor

5) Banjo Adaptor

MetricBanjo Adaptor, BSP Banjo Adaptor

6) Staplelok Adaptor

7) Double Ended Adaptor

8) Metric Transition Adaptor

9) British Transition Adaptor

10)American Transition Adaptor

11)Other Adaptor

NOTE: IF YOU HAVE ANY QUESTIONS ABOUT OUR PRODUCTS , PLEASE CONTACT US WHEN YOU ARE FREE .

ANY SUGGESTIONS ABOUT OUR PRODUCTS WILL ACCEPT
