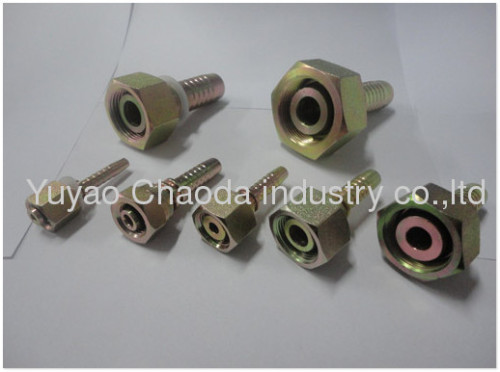

METRIC FEMALE 24° CONE O-RING H.T. SWAGED HOSE FITTING from China manufacturer

METRIC FEMALE 24° CONE O-RING H.T. SWAGED HOSE FITTING

Payment Terms:	T/T,L/C,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: 20511/20511-T

Head Code: Hexagon

Technics: Forged

Material: Carbon Steel

Brand Name: Yuyao Chaoda

Means of Transport: Ocean,Air

Shape: Others

Type: Others

Connection: Female

METRIC FEMALE 24° CONE O-RING H.T.: ISO 12151-2-DIN3865

Item:METRIC FEMALE 24° CONE O-RING H.T. SWAGED HOSE FITTING
Material:Carbon steel
Finish:Zinc plated
Process:Forging first and then CNC machining

SWAGED HOSE FITTING

20511 20511-T

METRIC FEMALE 24° CONE O-RING H.T.

ISO 12151-2—DIN 3865

Introductions
Hydraulic hose fittings and adapter
Material:Carbon Steel, Stainless Steel, Brass and Copper.
Size:All kind of Size is available.
Standard:SAE J514, SAE J1453, BS5200, DIN2353, DIN3865 Standards.
Thread: JIC series, BSP series, Metric series, ORFS series, NPTF series and NPTM series.
Certification: ISO9001:2000,TS16949
Thread: 90% products are exported to American and European Market for many years.
Export: Our products are adopted by top famous companies and quality is reliable.

OEM: Our engineering Team and Drawing Dept. could design and make hsoe fittings according to your special requirement.

YOUR RELIABLE SOURCE OF FITTINGS AND ADAPTERS

Specifications

PART NO.	THREAD E	HOSE BORE		TUBE O.D.	O RING	DIMENSIONS
PART NO.	THREAD E	DN	DASH	TUBE O.D.	O RING	A	C	S1
20511-14-04	M14X1.5	6	04	6	O04.5X1.5	28.5	1.1	19
20511-16-04	M16X1.5	6	04	8	O06.5X1.5	29	1.5	22
20511-16-05	M16X1.5	8	05	8	O06.5X1.5	29	1.5	22
20511-18-04T	M18X1.5	6	04	10	O08.0X1.5	26.5	2	22
20511-18-06	M18X1.5	10	06	10	O08.0X1.5	29	2	24
20511-20-06T	M20X1.5	10	06	12	O10.0X1.5	28.5	2.5	24
20511-20-08	M20X1.5	12	08	12	O10.0X1.5	31.5	2.5	27
20511-22-06T	M22X1.5	10	06	14	O11.0X2.0	28.5	2.5	27
20511-22-08	M22X1.5	12	08	14	O11.0X2.0	31.5	2.5	27
20511-24-06T	M24X1.5	10	06	16	O13.0X2.0	28.5	2.5	30
20511-24-08T	M24X1.5	12	08	16	O13.0X2.0	30	3	30
20511-30-10T	M30X2	16	10	20	O16.3X2.4	36	3	36
20511-30-12	M30X2	20	12	20	O16.3X2.4	39	3	36
20511-36-12T	M36X2	20	12	25	O20.3X2.4	36	3	41
20511-36-14T	M36X2	22	14	25	O20.3X2.4	36	3	41
20511-42-12T	M42X2	20	12	30	O25.3X2.4	40	5	50
20511-42-16T	M42X2	25	16	30	O25.3X2.4	41	5	50
20511-52-20T	M52X2	32	20	38	O33.3X2.4	44	6.5	60
20511-52-24T	M52X2	40	24	38	O33.3X2.4	44	6.5	60
Note:1.For use with braided hoses. 2.If use with spiral hoses,hose fitting series number is 20512-xx-xx.

Our main products are Ferrule, Hydraulic fittings, Hydraulic hose fittings, Hydraulic adapter, Hydrualic connections, hydraulic 3-piece suit, union tee, union cross, etc, details comes below:

1) Ferrule, matched with many kinds of pipes such as SAE, DIN, EN, GB etc

2) Metric Fitting

Flat Seal Fitting, Mulit-seal fitting, spherical seal fitting, 60° Cone seal fitting, 74° cone seal fitting, 24°cone O-ring L.T. Fitting, 24°cone O-ring H.T. Fitting, JIS 60° Cone Seal Fitting, Standpipe Fitting, Japan Metric Fitting etc;

3) British Pipe Adapter

JIS BSP 60° Cone seal Adapter, BSPT Adapter, BSP multiseal adapter, BSP flat Seal Adapter, BSP O-ring Seal Adapter;

4) Americal Pipe Adaptor

SAE Code 62 Flange, SAE Code 61 Flange, NPT Adpator, JIC 74°Cone Seal Adaptor, NPSM 60°Cone Seal Adaptor, ORFS Flat Seal Adaptor, SAE O-ring Seal Adaptor

5) Banjo Adaptor

MetricBanjo Adaptor, BSP Banjo Adaptor

6) Staplelok Adaptor

7) Double Ended Adaptor

8) Metric Transition Adaptor

9) British Transition Adaptor

10)American Transition Adaptor

11)Other Adaptor

NOTE: IF YOU HAVE ANY QUESTIONS ABOUT OUR PRODUCTS , PLEASE CONTACT US WHEN YOU ARE FREE .

ANY SUGGESTIONS ABOUT OUR PRODUCTS WILL ACCEPT
