METRIC MALE 24° CONE SEAT L.T. SWAGED HOSE FITTING from China manufacturer

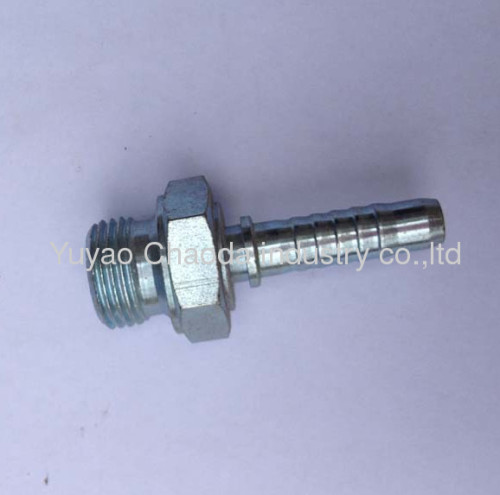

METRIC MALE 24° CONE SEAT L.T. SWAGED HOSE FITTING

Payment Terms:	T/T,L/C,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: 10411

Head Code: Hexagon

Technics: Forged

Material: Carbon Steel

Brand Name: Yuyao Chaoda

Means of Transport: Ocean,Air

Shape: Others

Type: Flange

Connection: Others

METRIC MALE 24° CONE SEAT L.T.: ISO 8434-1-DIN3861

Item:METRIC MALE 24° CONE SEAT L.T. ISO 8434-1-DIN3861 SWAGED HOSE FITTING
Material:According to customer's requirement

SWAGED HOSE FITTING

10411

METRIC MALE 24°

CONE SEAT L.T. ISO 8434-1—DIN 3861

Introductions
Hydraulic hose fittings and adapter
Material:Carbon Steel, Stainless Steel, Brass and Copper.
Size:All kind of Size is available.
Standard:SAE J514, SAE J1453, BS5200, DIN2353, DIN3865 Standards.
Thread: JIC series, BSP series, Metric series, ORFS series, NPTF series and NPTM series.
Certification: ISO9001:2000,TS16949
Thread: 90% products are exported to American and European Market for many years.
Export: Our products are adopted by top famous companies and quality is reliable.

OEM: Our engineering Team and Drawing Dept. could design and make hsoe fittings according to your special requirement.

YOUR RELIABLE SOURCE OF FITTINGS AND ADAPTERS

Specifications

PART NO.	THREAD E	HOSE BORE		TUBE O.D.	DIMENSIONS
PART NO.	THREAD E	DN	DASH	TUBE O.D.	A	C	S1
10411-12-04	M12X1.5	6	04	6	20.5	10	12
10411-14-04	M14X1.5	6	04	8	20.5	10	14
10411-14-05	M14X1.5	8	05	8	21.5	10	14
10411-16-04	M16X1.5	6	04	10	22.5	11	17
10411-16-05	M16X1.5	8	05	10	22.5	11	17
10411-16-06	M16X1.5	10	06	10	22.5	11	17
10411-18-05	M18X1.5	8	05	12	23.5	11	19
10411-18-06	M18X1.5	10	06	12	21.5	11	19
10411-22-06	M22X1.5	10	06	15	24.5	12	24
10411-22-08	M22X1.5	12	08	15	26	12	24
10411-26-08	M26X1.5	12	08	18	26.5	12	27
10411-26-10	M26X1.5	16	10	18	27	12	27
10411-27-10	M27X1.5	16	10	18	32	14	30
10411-30-10	M30X2	16	10	22	29	14	32
10411-30-12	M30X2	20	12	22	29	14	32
10411-36-16	M36X2	25	16	28	31.5	14	38
10411-45 -20	M45 X2	32	20	35	36	16	46
10411-52-24	M52X2	40	24	42	38	16	55
Note: 1.For use with braided hoses. 2.lf use with spiral hoses,hose fitting series number is 10412-xx-xx.

METRIC MALE 24° CONE SEAT L.T. ISO 8434-1-DIN3861 SWAGED HOSE FITTING

Our main products are Ferrule, Hydraulic fittings, Hydraulic hose fittings, Hydraulic adapter, Hydrualic connections, hydraulic 3-piece suit, union tee, union cross, etc, details comes below:

1) Ferrule, matched with many kinds of pipes such as SAE, DIN, EN, GB etc

2) Metric Fitting

Flat Seal Fitting, Mulit-seal fitting, spherical seal fitting, 60° Cone seal fitting, 74° cone seal fitting, 24°cone O-ring L.T. Fitting, 24°cone O-ring H.T. Fitting, JIS 60° Cone Seal Fitting, Standpipe Fitting, Japan Metric Fitting etc;

3) British Pipe Adapter

JIS BSP 60° Cone seal Adapter, BSPT Adapter, BSP multiseal adapter, BSP flat Seal Adapter, BSP O-ring Seal Adapter;

4) Americal Pipe Adaptor

SAE Code 62 Flange, SAE Code 61 Flange, NPT Adpator, JIC 74°Cone Seal Adaptor, NPSM 60°Cone Seal Adaptor, ORFS Flat Seal Adaptor, SAE O-ring Seal Adaptor

5) Banjo Adaptor

MetricBanjo Adaptor, BSP Banjo Adaptor

6) Staplelok Adaptor

7) Double Ended Adaptor

8) Metric Transition Adaptor

9) British Transition Adaptor

10)American Transition Adaptor

11)Other Adaptor

NOTE: IF YOU HAVE ANY QUESTIONS ABOUT OUR PRODUCTS , PLEASE CONTACT US WHEN YOU ARE FREE .

ANY SUGGESTIONS ABOUT OUR PRODUCTS WILL ACCEPT
