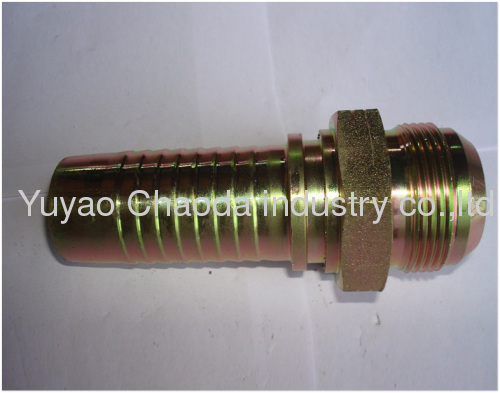

JIC MALE 74°CONE ISO 8434-2-SAE J514 SWAGED HOSE FITTING

Payment Terms: T/T,L/C,WU
Place of Origin: Zhejiang, China (Mainland)
inquire
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: 16711
Head Code: Others
Technics: Others
Material: Carbon Steel
Brand Name: Yuyao Chaoda
Means of Transport: Ocean,Air
Shape: Others
Type: Others
Connection: Male
JIC MALE 74°CONE: ISO 8434-2-SAE J514

SWAGED HOSE FITTING
16711
JIC MALE 74 ° CONE
ISO 8434-2_SAEJ514

JIC MALE 74°CONE ISO 8434-2-SAE J514 SWAGED HOSE FITTING
Specifications
PART NO.
THREAD E
HOSE BORE
DIMENSIONS
DN
DASH
A
C
S1
16711-04-03
7/16"X20
5
03
26
14
12
16711-04-04
7/16"X20
6
04
26.5
14
12
16711-05-04
1/2"X20
6
04
26.5
14
14
16711-05-05
1/2"X20
8
05
26.5
14
14
16711-05-06
1/2"X20
10
06
26.5
14
17
16711-06-04
9/16"X18
6
04
26.5
14.1
17
16711-06-05
9/16"X18
8
05
26.5
14.1
17
16711-06-06
9/16"X18
10
06
26.5
14.1
17
16711-08-06
3/4"X16
10
06
31.5
16.7
22
16711-08-08
3/4"X16
12
08
32
16.7
22
16711-10-06
7/8"X14
10
06
32
19.3
24
16711-10-08
7/8"X14
12
08
34.3
19.3
24
16711-10-10
7/8"X14
16
10
35.5
19.3
24
16711-12-08
1.1/16"X12
12
08
39
21.9
27
16711-12-10
1.1/16"X12
16
10
40
21.9
27
16711-12-12
1.1/16"X12
20
12
40
21.9
27
16711-12-16
1.1/16"X12
25
16
41
21.9
30
16711-14-10
1.3/16"X12
16
10
41.5
22.6
32
16711-14-12
1.3/16"X12
20
12
40.6
22.6
32
16711-16-12
1.5/16"X12
20
12
42.5
23.1
36
16711-16-16
1.5/16"X12
25
16
43.5
23.1
36
16711-20-16
1.5/8"X12
25
16
46.5
24.3
46
16711-20-20
1.5/8"X12
32
20
47 .5
24.3
46
16711-24-20
1.7/8"X12
32
20
53
27.5
50
16711-24-24
1.7/8"X12
40
24
53
27.5
50
16711-32-32
2.1/2"X12
50
32
62
33.9
65
Note:1. For use with braided hoses.
2.lf use with spiral hoses,hose fitting series number is 16712-xx-xx.
