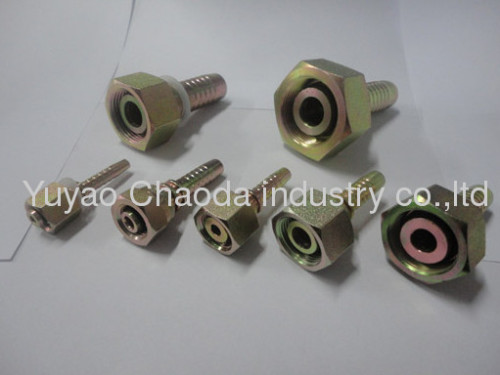

METRIC FEMALE 24° CONE O-RING L.T. HOSE FITTING

Price:	0.01~0.02 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: 20411/20411-T

Production Capacity: 100000pcs/month

Delivery Date: According to exact quantity

Shape: Others

Type: Bushing

Connection: Female

Means of Transport: Ocean,Air

Packing: PE bag+carton+parcel

Head Code: Others

Technics: Others

Material: Carbon Steel

METRIC FEMALE 24° CONE O-RING L.T.: HOSE FITTING

Item:METRIC FEMALE 24° CONE O-RING L.T. HOSE FITTING
Material:Carbon steel
Finish:Zinc plated

SWAGED HOSE FITTING

20411 20411-T

METRIC FLMALE24° CONE O-RING L.T.

ISO 12151-2—DIN 3865

Introductions
Hydraulic hose fittings and adapter
Material:Carbon Steel, Stainless Steel, Brass and Copper.
Size:All kind of Size is available.
Standard:SAE J514, SAE J1453, BS5200, DIN2353, DIN3865 Standards.
Thread: JIC series, BSP series, Metric series, ORFS series, NPTF series and NPTM series.
Certification: ISO9001:2000,TS16949
Thread: 90% products are exported to American and European Market for many years.
Export: Our products are adopted by top famous companies and quality is reliable.

OEM: Our engineering Team and Drawing Dept. could design and make hsoe fittings according to your special requirement.

YOUR RELIABLE SOURCE OF FITTINGS AND ADAPTERS

20411/20411-T
METRIC FEMALE 24° CONE O-RING L.T. HOSE FITTING

PART NO.	THREAD E	HOSE BORE		TUBE O.D.	O RING	DIMENSION
PART NO.	THREAD E	DN	DASH	TUBE O.D.	O RING	A	C	S2
20411-12-04	M12*1.5	6	04	6	O04.5*1.5	26	1	17
20411-14-04	M14*1.5	6	04	6	O06.5*1.5	27.5	2	19
20411-14-06	M14*1.5	10	06	10	O06.5*1.5	27.5	2	19
20411-16-04	M16*1.5	6	04	6	O08.5*1.5	28	2	22
20411-16-05	M16*1.5	8	05	8	O08.0*1.5	28	2	22
20411-16-06	M16*1.5	10	06	10	O08.5*1.5	28	2	22
20411-18-05T	M18*1.5	8	05	8	O10.0*1.5	27.5	1.8	22
20411-18-06	M18*1.5	10	06	10	O10.0*1.5	29	2.5	24
20411-18-08	M18*1.5	12	08	12	O10.0*1.5	29.5	2.5	24
20411-22-05T	M22*1.5	8	05	8	O12.0*2.0	29.5	2.1	27
20411-22-06T	M22*1.5	10	06	10	O12.0*2.0	29	2.5	27
20411-22-08	M22*1.5	12	08	12	O12.0*2.0	32	2.5	27
20411-26-10	M26*1.5	16	10	16	O15.0*2.0	35	2.5	32
20411-26-12	M26*1.5	20	12	20	O15.0*2.0	35	2.5	32
20411-27-10T	M27*1.5	16	10	16	O15.0*2.0	28	2.5	32
20411-27-12	M27*1.5	20	12	20	O15.0*2.0	35	2.5	32
20711-30-10T	M30*2	16	10	16	O20.0*2.0	35	4	36
20711-30-12	M30*2	20	12	20	O20.0*2.0	38	4	36
20711-36-12T	M36*2	20	12	20	O26.0*2.0	35	4	41
20711-36-14T	M36*2	22	14	22	O26.0*2.0	36	4	41
20711-45-16T	M45*2	25	16	25	O32.0*2.5	41	5	55
20411-45-20T	M45*2	32	20	32	O32.0*2.5	42	5	55
20411-52-20T	M52*2	32	20	32	O38.0*2.5	44	5.5	60
20411-52-24T	M52*2	40	24	40	O38.0*2.5	44	5.5	60
Notes:1.For use with braided hoses 2.If use with spiral hoses,hose fitting
series number is 20412-xx-xx

Our main products are Ferrule, Hydraulic fittings, Hydraulic hose fittings, Hydraulic adapter, Hydrualic connections, hydraulic 3-piece suit, union tee, union cross, etc, details comes below:

1) Ferrule, matched with many kinds of pipes such as SAE, DIN, EN, GB etc

2) Metric Fitting

Flat Seal Fitting, Mulit-seal fitting, spherical seal fitting, 60° Cone seal fitting, 74° cone seal fitting, 24°cone O-ring L.T. Fitting, 24°cone O-ring H.T. Fitting, JIS 60° Cone Seal Fitting, Standpipe Fitting, Japan Metric Fitting etc;

3) British Pipe Adapter

JIS BSP 60° Cone seal Adapter, BSPT Adapter, BSP multiseal adapter, BSP flat Seal Adapter, BSP O-ring Seal Adapter;

4) Americal Pipe Adaptor

SAE Code 62 Flange, SAE Code 61 Flange, NPT Adpator, JIC 74°Cone Seal Adaptor, NPSM 60°Cone Seal Adaptor, ORFS Flat Seal Adaptor, SAE O-ring Seal Adaptor

5) Banjo Adaptor

MetricBanjo Adaptor, BSP Banjo Adaptor

6) Staplelok Adaptor

7) Double Ended Adaptor

8) Metric Transition Adaptor

9) British Transition Adaptor

10)American Transition Adaptor

11)Other Adaptor

NOTE: IF YOU HAVE ANY QUESTIONS ABOUT OUR PRODUCTS , PLEASE CONTACT US WHEN YOU ARE FREE .

ANY SUGGESTIONS ABOUT OUR PRODUCTS WILL ACCEPT
