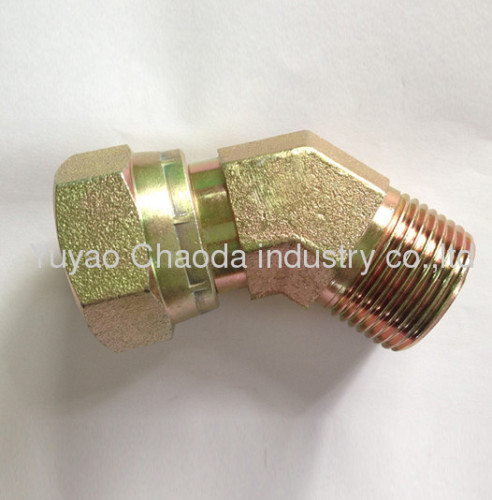

45°ELBOW BSP MALE 60° SEAT OR BSP FEMALE 60° CONE from China manufacturer

45°ELBOW BSP MALE 60° SEAT OR BSP FEMALE 60° CONE

Payment Terms:	T/T,L/C,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: 2B4

Head Code: Hexagon

Technics: Forged

Material: Carbon Steel

Brand Name: Yuyao Chaoda

Means of Transport: Ocean,Air

Shape: Others

Type: Elbow

Connection: Male

45°ELBOW BSP MALE 60° SEAT: OR BSP FEMALE 60° CONE

Item: 45°ELBOW BSP MALE 60° SEAT OR BSP FEMALE 60° CONE
Material:According to customer's requirement
Process:First forging and then CNC machining

BSP THREAD FITTINGS

2B4

45 °ELBOW BSP MALE 60°

SEAT/BSP FEMALE 60°CONE

Introductions
Hydraulic hose fittings and adapter
Material:Carbon Steel, Stainless Steel, Brass and Copper.
Size:All kind of Size is available.
Standard:SAE J514, SAE J1453, BS5200, DIN2353, DIN3865 Standards.
Thread: JIC series, BSP series, Metric series, ORFS series, NPTF series and NPTM series.
Certification: ISO9001:2000,TS16949
Thread: 90% products are exported to American and European Market for many years.
Export: Our products are adopted by top famous companies and quality is reliable.

OEM: Our engineering Team and Drawing Dept. could design and make hsoe fittings according to your special requirement.

YOUR RELIABLE SOURCE OF FITTINGS AND ADAPTERS

Specifications

PART NO.	THREAD		DIMENSIONS
PART NO.	E	F	A	B	SI	S2
2B4-04	G1/4"X19	G1/4"X19	20.3	5.5	14	19
2B4-04-06	G1/4"X19	G3/8"X19	20.3	6.3	14	22
2B4-06	G3/8"X19	G3/8"X19	22	6.3	16	22
2B4-06-04	G3/8"X19	G1/4"X19	22	5.5	16	19
2 B4-08	G1/2"X14	G1/2"X14	27	7.5	22	27
2B4-08-06	G1/2"X14	G3/8"X19	27	6.3	22	22
2B4-10	G5/8"X14	G5/8"X14	28.5	9.5	22	30
2E4-10-08	G5/8"X14	G1/2"X14	28.5	7.5	22	27
2B4-12	G3/4"X14	G3/4"X14	31	10.9	27	32
2B4-16	G1"X11	G1"X11	35	11.7	33	41
2B4-20	G1.1/4"X11	G1.1/4"X11	38.5	11	41	50
2B4-24	G1.1/2"X11	G1.1/2"X11	44	13	48	55
2 B4-32	G2"X11	G2"X11	51	16	63	70

Our main products are Ferrule, Hydraulic fittings, Hydraulic hose fittings, Hydraulic adapter, Hydrualic connections, hydraulic 3-piece suit, union tee, union cross, etc, details comes below:

1) Ferrule, matched with many kinds of pipes such as SAE, DIN, EN, GB etc

2) Metric Fitting

Flat Seal Fitting, Mulit-seal fitting, spherical seal fitting, 60° Cone seal fitting, 74° cone seal fitting, 24°cone O-ring L.T. Fitting, 24°cone O-ring H.T. Fitting, JIS 60° Cone Seal Fitting, Standpipe Fitting, Japan Metric Fitting etc;

3) British Pipe Adapter

JIS BSP 60° Cone seal Adapter, BSPT Adapter, BSP multiseal adapter, BSP flat Seal Adapter, BSP O-ring Seal Adapter;

4) Americal Pipe Adaptor

SAE Code 62 Flange, SAE Code 61 Flange, NPT Adpator, JIC 74°Cone Seal Adaptor, NPSM 60°Cone Seal Adaptor, ORFS Flat Seal Adaptor, SAE O-ring Seal Adaptor

5) Banjo Adaptor

MetricBanjo Adaptor, BSP Banjo Adaptor

6) Staplelok Adaptor

7) Double Ended Adaptor

8) Metric Transition Adaptor

9) British Transition Adaptor

10)American Transition Adaptor

11)Other Adaptor
