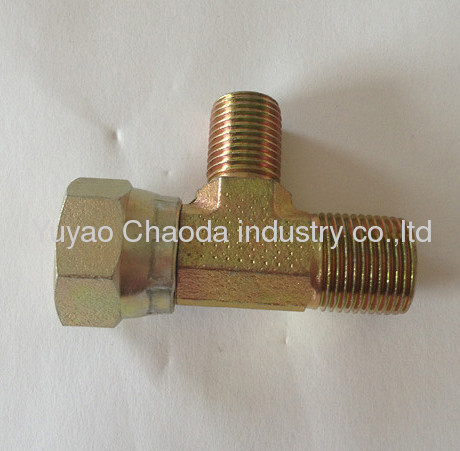

BSP MALE 60° SEAT/BSP FEMALE 60° CONE RUN TEE

Payment Terms: T/T,L/C,WU
Place of Origin: Zhejiang, China (Mainland)
inquire
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: CB
Head Code: Others
Technics: Forged
Material: Carbon Steel
Brand Name: Yuyao Chaoda
Means of Transport: Ocean,Air
Shape: Others
Type: Tee
Connection: Male
BSP MALE 60° SEAT/BSP FEMALE 60°: CONE RUN TEE

Item:BSP MALE 60° SEAT/BSP FEMALE 60° CONE RUN TEE
Material:According to customer's requirement
Process:First forging and then CNC machining

BSP THREAD FITTINGS
CB
BSP MALE 60° SEAT/BSP FEMALE 60° CONE RUN TEE

Introductions
Hydraulic hose fittings and adapter
Material:
Carbon Steel, Stainless Steel, Brass and Copper.
Size:All kind of Size is available.
Standard:SAE J514, SAE J1453, BS5200, DIN2353, DIN3865 Standards.
Thread: JIC series, BSP series, Metric series, ORFS series, NPTF series and NPTM series.
Certification: ISO9001:2000,TS16949
Thread: 90% products are exported to American and European Market for many years.
Export: Our products are adopted by top famous companies and quality is reliable.
OEM: Our engineering Team and Drawing Dept. could design and make hsoe fittings according to your special requirement.
YOUR RELIABLE SOURCE OF FITTINGS AND ADAPTERS
BSP MALE 60° SEAT/BSP FEMALE 60° CONE RUN TEE

Specifications
PART NO.
THREAD
DIMENSIONS
E
F
G
A
B
C
S1
S2
CB-02
G1/8"X28
G1/8"X28
G1/8"X28
19.8
19.8
5.5
11
14
CB-04
G1/4"X19
G1/4"X19
G1/4"X19
25
25
55
14
19
CB-06
G3/8"X19
G3/8"X19
G3/8"X19
27.5
27.5
6.3
16
22
CB-08
G1/2"X14
G1/2"X14
G1/2"X14
34.5
34.5
7.5
22
27
CB-10
G5/8"X14
G5/8"X14
G5/8"X14
34.5
34.5
9.5
22
30
CB-12
G3/4"X14
G3/4"X14
G3/4"X14
40
40
10.9
27
32
CB-16
G1"X11
G1"X11
G1"X11
46
46
11.7
33
41
CB-20
G1.1/4"X11
G1.1/4"X11
G1.1/4"X11
50.5
50.5
11
41
50
CB-24
G1.1/2"X11
G1.1/2"X11
G1.1/2"X11
57.5
57.5
13
48
55
CB-32
G2"X11
G2"X11
G2"X11
72.5
72.5
16
63
70

BSP MALE 60° SEAT/BSP FEMALE 60° CONE RUN TEE

BSP MALE 60° SEAT/BSP FEMALE 60° CONE RUN TEE
Our main products are Ferrule, Hydraulic fittings, Hydraulic hose fittings, Hydraulic adapter, Hydrualic connections, hydraulic 3-piece suit, union tee, union cross, etc, details comes below:
1) Ferrule, matched with many kinds of pipes such as SAE, DIN, EN, GB etc
2) Metric Fitting
  Flat Seal Fitting, Mulit-seal fitting, spherical seal fitting, 60° Cone seal fitting, 74° cone seal fitting, 24°cone O-ring L.T. Fitting, 24°cone O-ring H.T. Fitting, JIS 60° Cone Seal Fitting, Standpipe Fitting, Japan Metric Fitting etc;
3) British Pipe Adapter
  JIS BSP 60° Cone seal Adapter, BSPT Adapter, BSP multiseal adapter, BSP flat Seal Adapter, BSP O-ring Seal Adapter;
4) Americal Pipe Adaptor
  SAE Code 62 Flange, SAE Code 61 Flange, NPT Adpator, JIC 74°Cone Seal Adaptor, NPSM 60°Cone Seal Adaptor, ORFS Flat Seal Adaptor, SAE O-ring Seal Adaptor
5) Banjo Adaptor
   MetricBanjo Adaptor, BSP Banjo Adaptor
6) Staplelok Adaptor
7) Double Ended Adaptor
8) Metric Transition Adaptor
9) British Transition Adaptor
10)American Transition Adaptor
11)Other Adaptor
NOTE: IF YOU HAVE ANY QUESTIONS ABOUT OUR PRODUCTS , PLEASE CONTACT US WHEN YOU ARE FREE .
ANY SUGGESTIONS ABOUT OUR PRODUCTS WILL ACCEPT

BSP MALE 60° SEAT/BSP FEMALE 60° CONE RUN TEE
