BSP MALE DOUBLE USE FOR 60°SEAT OR BONDED SEAL/BSP MALE O-R from China manufacturer

Payment Terms:	T/T,L/C,WU
Place of Origin:	Zhejiang, China (Mainland)

Product Detail

Model No.: 1BG

Head Code: Hexagon

Technics: Others

Material: Carbon Steel

Brand Name: Yuyao Chaoda

Means of Transport: Ocean,Air

Shape: Others

Type: Others

Connection: Male

BSP MALE DOUBLE USE FOR 60°SEAT: OR BONDED SEAL/BSP MALE O-R...

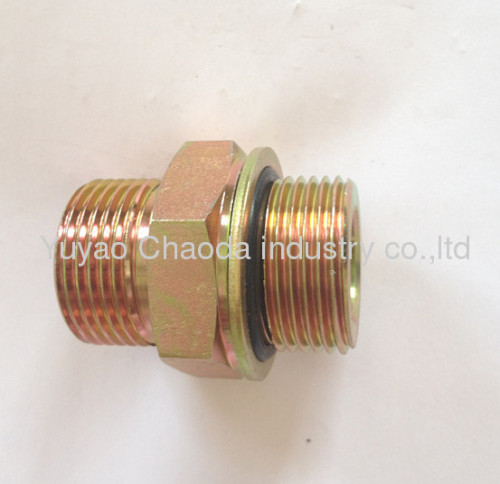

Item:BSP MALE DOUBLE USE FOR 60°SEAT OR BONDED SEAL/BSP MALE O-RING
Material:According to customer's requirement
Process:CNC machining

PART NO.	THREAD		DIMENSIONS
PART NO.	E	F	A	B	S1	L
1BG-02	G1/8"X28	G1/8"X28	10	9	14	25.2
1BG-04	G1/4"X19	G1/4"X19	12	12	19	30.2
1BG-04-06	G1/4"X19	G3/8"X19	12	13.5	19	31.5
1BG-06	G3/8"X19	G3/8"X19	13.5	13.5	22	35
1BG-06-04	G3/8"X19	G1/4"X19	13.5	12	22	33.6
1BG-06-08	G3/8"X19	G1/2"X14	13.5	16	27	39.6
1BG-08	G1/2"X14	G1/2"X14	16	16	27	42
1BG-08-06	G1/2"X14	G3/8"X19	16	13.5	27	39.5
1BG-08-12	G1/2"X14	G3/4"X14	16	18.5	27	44.5
1BG-10-08	G5/8"X14	G1/2"X14	17.5	16	30	43.6
1BG-12	G3/4"X14	G3/4"X14	18.5	18.5	32	47
1BG-12-08	G3/4"X14	G1/2"X14	18.5	16	32	44.2
1BG-16-08	G1"X11	G1/2"X11	20.5	16	41	48.5
1BG-16	G1"X11	G1"X11	20.5	20.5	41	53
1BG-16-12	G1"X11	G3/4"X14	20.5	18.5	41	51
1BG-20	G1.1/4"X11	G1.1/4"X11	20.5	20.5	50	58
1BG-24	G1.1/2"X11	G1.1/2"X11	23	23	55	63
