BSP MALE DOUBLE USE FOR 60° SEAT OR BONDED SEAL/METRIC MALE- from China manufacturer

BSP MALE DOUBLE USE FOR 60° SEAT OR BONDED SEAL/METRIC MALE-

Payment Terms:	T/T,L/C,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: 1BH

Head Code: Hexagon

Technics: Others

Material: Carbon Steel

Brand Name: Yuyao Chaoda

Means of Transport: Ocean,Air

Shape: Others

Type: Others

Connection: Male

BSP MALE DOUBLE USE FOR 60° SEAT: OR BONDED SEAL/METRIC MALE-...

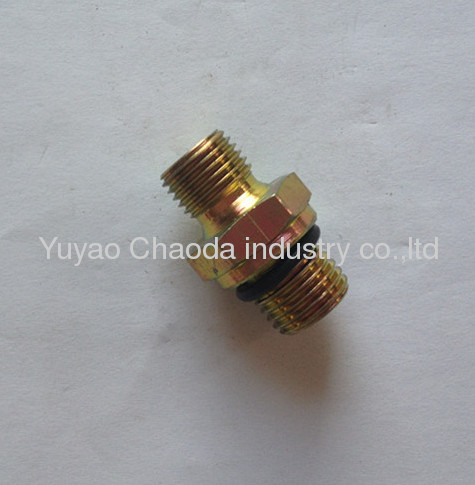

Item:BSP MALE DOUBLE USE FOR 60° SEAT OR BONDED SEAL/METRIC MALE-SERIES ISO6149-3
Material:According to customer;s requirement

BSP THREAD FITTINGS

1BH

BSP MALE DOUBLE USE FOR 60° SEAT OR BONDED SEAL/

METRIC MALE L-SERIES IS0 6149-3

Introductions
Hydraulic hose fittings and adapter
Material:Carbon Steel, Stainless Steel, Brass and Copper.
Size:All kind of Size is available.
Standard:SAE J514, SAE J1453, BS5200, DIN2353, DIN3865 Standards.
Thread: JIC series, BSP series, Metric series, ORFS series, NPTF series and NPTM series.
Certification: ISO9001:2000,TS16949
Thread: 90% products are exported to American and European Market for many years.
Export: Our products are adopted by top famous companies and quality is reliable.

OEM: Our engineering Team and Drawing Dept. could design and make hsoe fittings according to your special requirement.

YOUR RELIABLE SOURCE OF FITTINGS AND ADAPTERS

Specifications

PART NO.	THREAD		0-RING	DIMENSIONS
PART NO.	E	F	F	A	B	S1	L
1BH-02-10	G1/8"X28	M10X1	O08.1X1.6	10	8.5	14	25
1BH-D2-12	G1/8"X28	M12X1.5	O09.3X2.4	10	11	17	28
1BH-04-12	G1/4"X19	M12X1.5	O09.3X2.4	12	11	19	30
1BH-04-14	G1/4"X19	M14X1.5	O11.3X2.4	12	11	19	31.5
1BH-04-16	G1/4"X19	M16X1.5	O13.3X2.4	12	11.5	22	31.5
1BH-06-14	G3/8"X19	M14X1.5	O11.3X2.4	13.5	11	22	35
1BH-06-16	G3/8"X19	M16X1.5	O13.3X2.4	13.5	11.5	22	33
1BH-06-18	G3/8"X19	M18X1.5	O15.3X2.4	13.5	12.5	24	36.5
1BH-08-18	G1/2"X14	M18X1.5	O15.3X2.4	16	12.5	27	41
1BH-08-22	G1/2"X14	M22X1.5	O19.3X2.4	16	13	27	41.5
1BH-10-22	G5/8"X14	M22X1.5	O19.3X2.4	17.5	13	30	43
1BH-12-16	G3/4"X14	M16X1.5	O13.3X2.4	18.5	11.5	32	43.5
1BH-12-22	G3/4"X14	M22X1.5	O19.3X2.4	18.5	13	32	45
1BH-12-27	G3/4"X14	M27X2	O23.5X3.0	18.5	16	32	45.5
1BH-16-27	G1"X11	M27X2	O23.5X3.0	20.5	16	41	49
1BH-16-33	G1"X11	M33X2	O29.5X3.0	20.5	16	41	49.5
1BH-20-42	G1.1/4"X11	M42X2	O38.5X3.0	20.5	16	50	51.5
1BH-24-48	G1.1/2"X11	M48X2	O44 .5X3.0	23	17.5	55	55
Note:fit for ISO 9974 -1 port or ISO 6149-1 port when useless of retaining ring.
