You are here: home  > Hydraulic fittings  > BSP Thread fittings  > 45° ELBOW BSP MALE 60° SEAT/BSP MALE O-RING ADJUSTABLE STUD
Enlarge 45° ELBOW BSP MALE 60° SEAT/BSP MALE O-RING ADJUSTABLE STUD

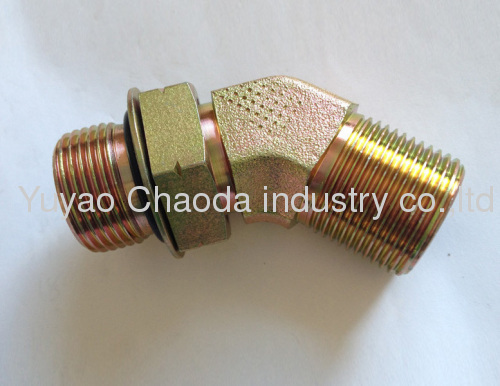

45° ELBOW BSP MALE 60° SEAT/BSP MALE O-RING ADJUSTABLE STUD

Payment Terms: T/T,L/C,WU
Place of Origin: Zhejiang, China (Mainland)
inquire
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: 1BG4-OG
Head Code: Others
Technics: Forged
Material: Carbon Steel
Brand Name: Yuyao Chaoda
Means of Transport: Ocean,Air
Shape: Others
Type: Elbow
Connection: Male
45° ELBOW BSP MALE 60° SEAT: BSP MALE O-RING ADJUSTABLE ...

Item:45° ELBOW BSP MALE 60° SEAT/BSP MALE O-RING ADJUSTABLE STUD END
Material:According to customer's requirement

45° ELBOW BSP MALE 60° SEAT/BSP MALE O-RING ADJUSTABLE STUD END

PART NO.
DIMENSIONS
E
F
A
B
S1
S2
1BG4-04OG
G1/4"X19
G1/4"X19
22
28
14
19
1BG4-04-06OG
G1/4"X19
G3/8"X19
22
30
17
22
1BG4-04-08OG
G1/4"X19
G1/2"X14
27
36
33
27
1BG4-06OG
G3/8"X19
G3/8"X19
22
30
17
22
1BG4-06-08OG
G3/8"X19
G1/2"X14
27
36
22
27
1BG4-08OG
G1/2"X14
G1/2"X14
27
36
22
27
1BG4-12OG
G3/4"X14
G3/4"X14
33
42
27
32
1BG4-12-16OG
G3/4"X14
G1"X11
37
44
33
41
1BG4-16OG
G1"X11
G1"X11
37
44
33
41
1BG4-20OG
G1.1/4"X11
G1.1/4"X11
40
47.5
44
50
1BG4-24OG
G1.1/2"X11
G1.1/2"X11
47
51.5
52
55

1) Hydraulic tube fittings / adapters made according to SAE J514, SAE J1453,
    BSI 5200, DIN 2353, DIN 3865 standards
2) Our products of hydraulic tube fittings and adapters enjoy high reputation
    in the American and European big chains of its high quality, even
    comparing with world famous brands
3) Hydraulic tube fittings and adapters: we can offer whole series with JIC
    series, BSP/metric series, ORFS series, NPTF series, NPSM series,
    flange series, ORB series. Straight, elbow 45 degree, elbow 90 degrees,
    made to SAE J514, SAE, J1453, DIN 2353, BSI 5200 standards. For
    hydraulic tube fittings and adapters, we are looking for long-term
    buyers / cooperators especially in European, Australian, South African
    and US market
4) Hydraulic hose fittings: can offer carbon steel, stainless steel materials,
    swagged hose fitting, crimped hose fitting, interlock hose fitting, reusable
    Hose fitting, socketless hose fitting. NPT, BSP 60° cone, ORFS, JIC
    74° cone, SAE 90° cone, BSP O-ring, BSPT, BSP multi-seal, SAE flange,
    metric, JIS
5) Hose insert / nipple: carbon steel, stainless steel, brass materials, zinc
    alloy cast fitting, welding hose fittings, PVC garden hose fittings, PVC air
    hose fittings (1/4" NPT male), rubber hose fittings


45° ELBOW BSP MALE 60° SEAT/BSP MALE O-RING ADJUSTABLE STUD END

45° ELBOW BSP MALE 60° SEAT/BSP MALE O-RING ADJUSTABLE STUD END

45° ELBOW BSP MALE 60° SEAT/BSP MALE O-RING ADJUSTABLE STUD END
